12V Fuse Block, 4 Circuits Waterproof Marine Fuse Panel Relay Box Kit with LED Indicator Damp-Proof Cover, ATO Blade Block for 12V/24V Automotive Marine Truck Car Boat RV

Parts List: 4-way: 1 x 4-way Fuse Block 2 x Stickers 1 x 5A Fuse 1 x 7.5A Fuse 1 x 10A Fuse 1 x 15A Fuse Description: Our 12V fuse box meets all the requisites for an optimal fuse box. It has high mechanical strength, excellent insulation, is heat resistant and flame retardant. Each circuit is equipped with an LED indicator, ensuring easy usage. The compact design of the 4-way fuse box simplifies wiring. High Quality: The fuse box block features a PC waterproof and dustproof cover. It is extremely safe to use as it has good insulation, heat resistance and flame retardant properties. LED Indicator: When the red LED indicator light turns off, it signals that the fuse has blown and can be directly replaced with a new one. Material: PC, nickel-plated copper, aluminium alloy Size: 4-way 10.5 x 4 x 3.9CM (error less than ±0.25CM) Voltage: less than DC 80V Individual slots are suitable for circuits with a continuous operating current of less than 40A and a total input current of up to 100A. M4 screws recommended installation torque 1.5Nm, M5 nuts recommended maximum installation torque 3.5Nm

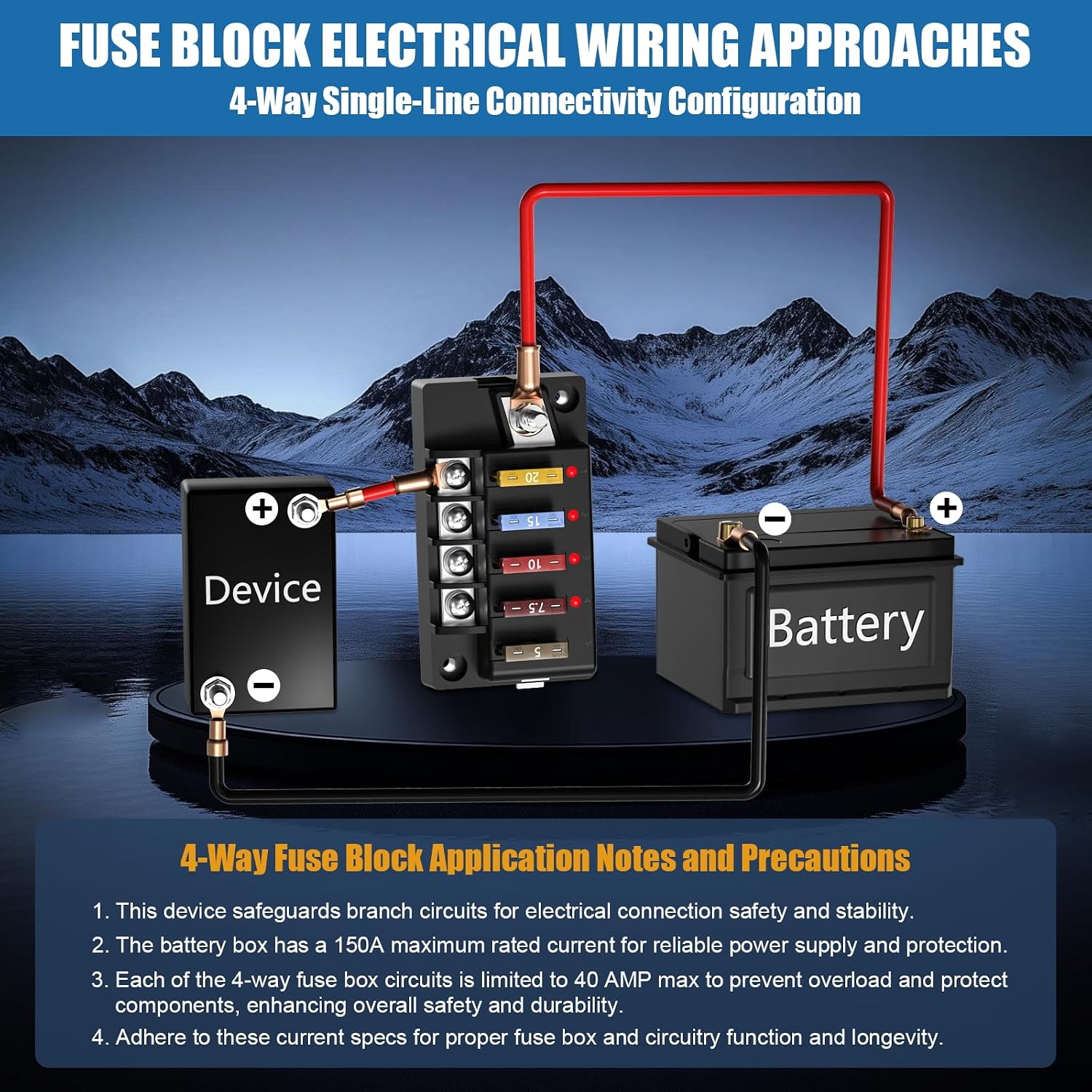

• Upgraded 12V Fuse Block: Our 12v 4-way fuse block adopts a one-in-four-out single-side outlet, which can be installed against the side of the product, saving space with its compact size and making wiring simpler. The shield extends to the top of the contact screws to avoid the conductor falling onto the metal and causing short circuits. A spare slot is provided for easy fuse replacement by the user when needed.
• Safe and Secure Material: The blade fuse block material is PA66 + GF15%, meeting the standards of an ideal marine fuse box. It has high mechanical strength, good insulation, heat and flame resistance. With a PC waterproof and dustproof cover, nickel-plated copper connection, and PP*40 sticker, there will be no issues like fractures, deformation, burning, or short circuits.
• Product Parameters: 12v power distribution block can be fitted with 5 ATO blade fuses for voltages less than DC80V. Individual slots are suitable for circuits with a continuous operating current of less than 40A. Maximum total input current of 100A. Recommended mounting torque for M4 screws is 1.5Nm. Recommended maximum mounting torque for M5 nuts is 3.5Nm.
• LED Indicator For Circuit Issues: In this 12v automotive fuse box, each circuit has an LED indicator. When the red light LED is on, it indicates that the line is powered and running normally. When the red light LED is off, it means the fuse has been disconnected, reminding you to check and replace the blown fuse.
• Scope of Application: The 12V 4-way fuse block bus bar can be directly connected to any electrical circuit on the car/boat such as roof lights, car headlights, wide-view lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc and is widely used in cars, villas, RVs, buses, yachts, boats, etc.
